Advanced Metering Solutions Practical Flexible Expandable Data Read Remote Control Load Management

Brand Name : Calin

Model Number : Calinpay-S

Certification : STS

Place of Origin : China

MOQ : Negotiation

Payment Terms : Western Union,L/C,T/T,Paypal

Supply Ability : 7,000,000

Delivery Time : 30 days

Packaging Details : With meters in carton or in memory card

Price : Negotiation

Standard : STS , IEC62055-51, IEC 62056-21, DLMS/COSEM

O/S : Windows Linux

Database : SQL ORACLE

Operation : Multi-threaded transaction

Framework : Standalone BS CIS

Communication : Internet, Intranet, LAN / WAN

Contact Now

Advanced Metering Solutions Practical Flexible Expandable Data Read Remote Control Load Management


Calin's AMI solutions are built up on an annual basis of 80,000,000 pcs smart meter deployment process in China in the past one decades. China is one of the earliest country pioneering smart metering solutions in the world. Given huge population and grid scale basis, China AMI solutions tolerate zero theoretical fantacy or technical ads, being practical and feasible for implementation. Building a stable and sound automated meter reading system is the solid base of entire AMI setup. Getting connected is the core principle of the entire solution. Calin's expertise is groomed from an intense interactions in the fornt line of smart metering deployment field in China and will help utility or service providers to optimize their operation and thus generate solid profit by non-technical loss reduction and recovery and better customer education as well as services.


China smart meter installation in 1,000 pcs

Calin's AMI solution must be practical, easy to implement, flexibile to cover utility's daily operation, and expandable for helping utilities growing in both diversity of management and population to be served. Calin offers broad portfolio of products and services in a simplified, subscription-based pricing structure for utilities.


Key Benefit

  • Analytics modules support improvements in many areas
  • Stable connection from the bottom layer to the head-end servers (HES)
  • Real-time data readout and remote load management as in intrusive controls
  • Encryption algorithms and digital certificates are utilized to keep utility data safe
  • Can start with entry level AMR AMM system for meter reading puposes
  • ODM and RD customization on clients' request

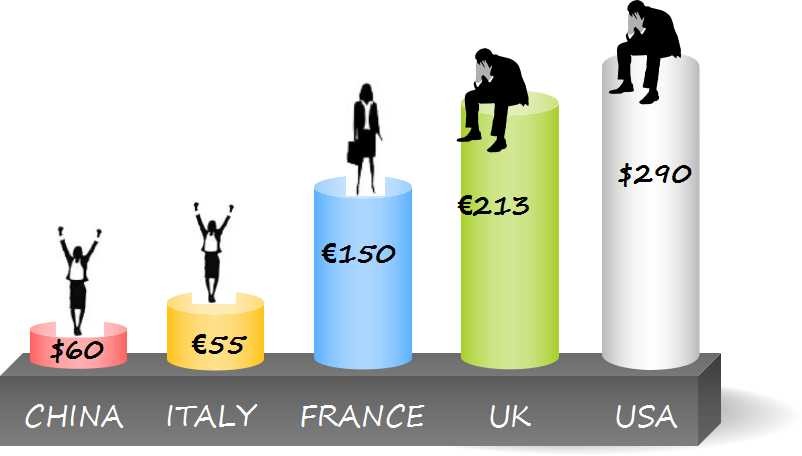

China smart metering cost per capital



AMI electricity meter Specification Datasheet



Parameter

1 Phase

3 Phase

Nominal voltage

110/120/220/230/240V

Un (40%- 130%)

3x110/120/220/230/240V Un(30%- 135%)

Norminal current

5(60)A

10(100)A

Connection type

Whole current / CTVT connection

Whole current / CTVT connection

Maximum current

80A

100A

Frequency

50Hz

50Hz

Accuracy class

IEC Class.1

IEC Class.1

Voltage circuit burden

≤1.5W & 1.2VA

≤1.5W & 5VA

Current circuit burden

≤0.2VA

≤0.5VA

Protective class

IP 54 as IEC 60529

IP54 as IEC 60529

Insulation class

6kV Class II

6.5kV Class II

Surge immunity

4 kV

4.3kV

Electrostatic discharge

15kV

16kV air discharge

Immunity to HF fields

80MHz to 2GHz@30V/m

80MHz to 2GHz@30V/m

Fast transient burst

4.3kV

4.3kV

Radio interference

As CISPR22

As CISPR22

Battery life without power

10 years

10 years

Dimension

160mmx112mmx71mm

290mmx170mmx85mm

Weight

Approximate 0.7kg

Approximate 3kg
