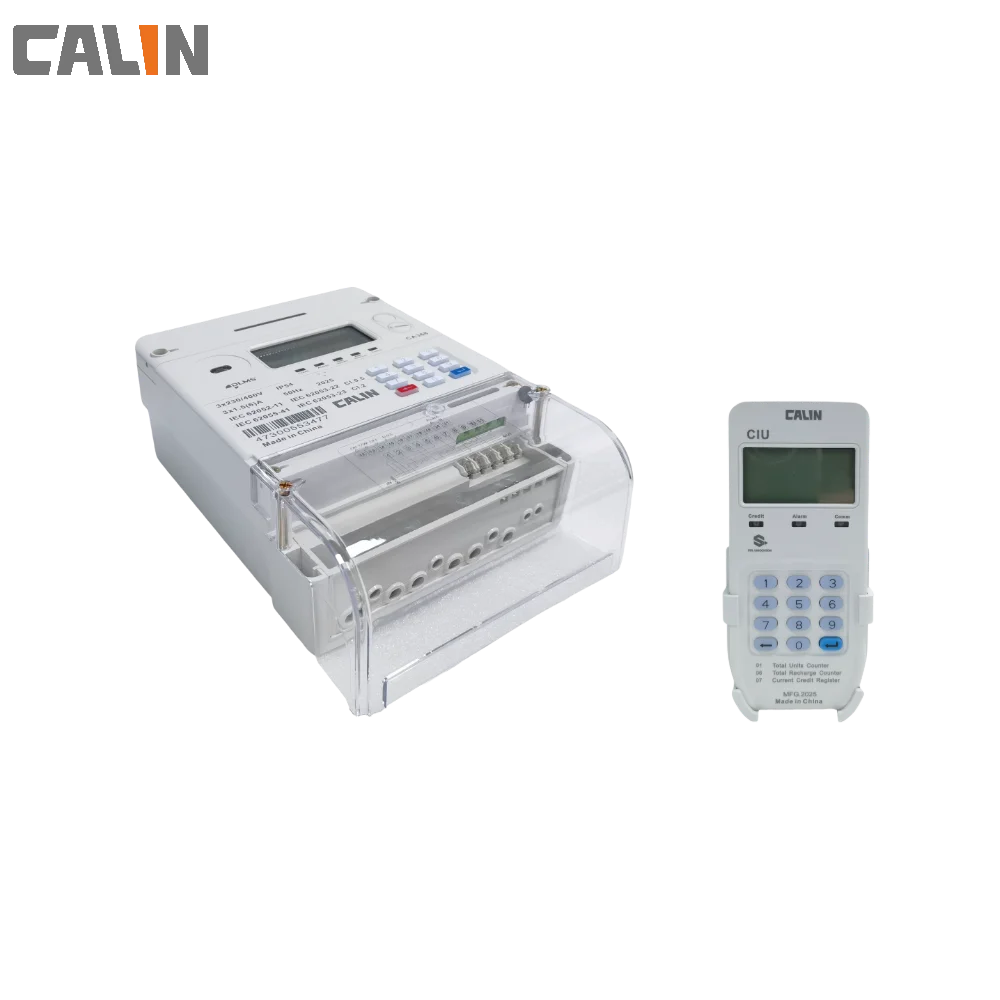

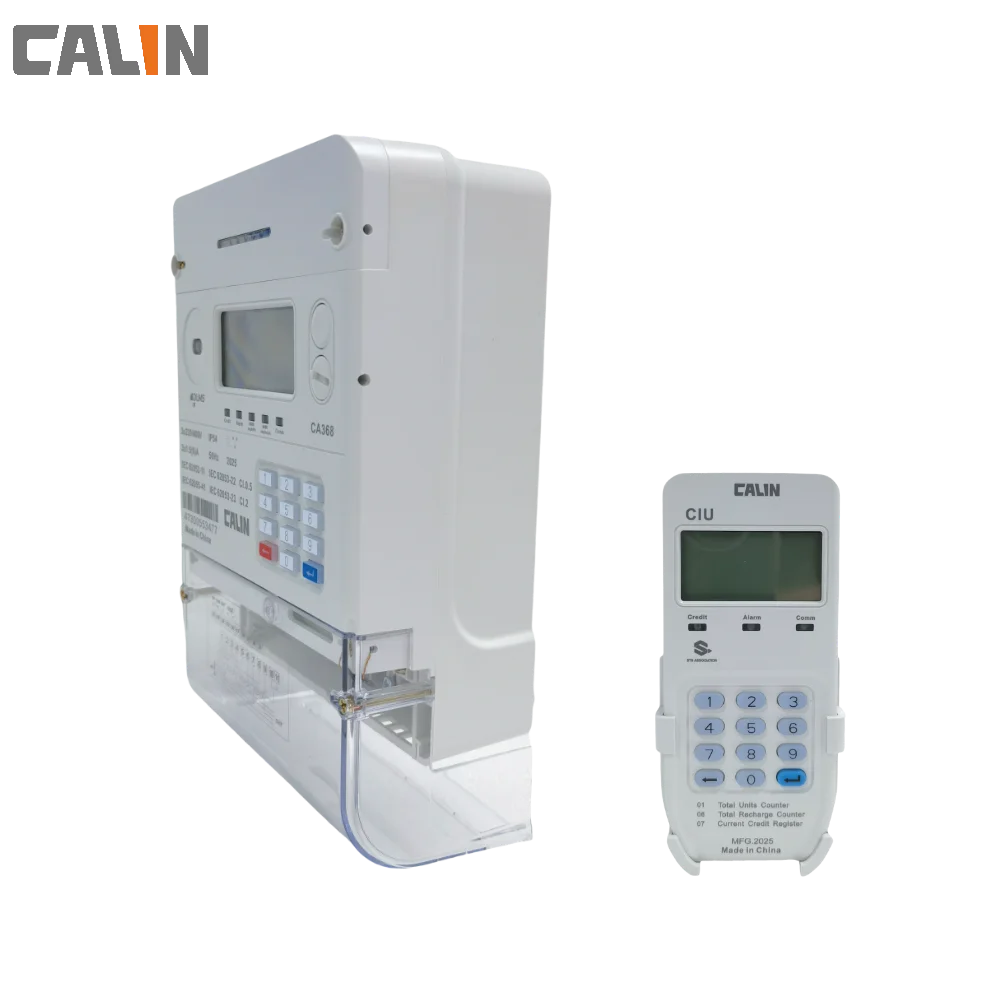

Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy

Model Number : CA368-MF51

Brand Name : CALIN

Place of Origin : Guangdong, China

MOQ : 1

Price : $55-70

Accuracy Class : Class 0.5S

Max Current : 10A

Measuring Energy Range : 0-10000000 kWh, 0-999999.99 KWh

Phase : Three Phase

Rated Current : 1A

Basic Current : 1A

Dimensions : 244x168x79mm

Display Type : Digital Only

Operating Temperature : -25℃～70℃

Output Voltage : 220v/230v/240v

Nominal Voltage : 3x230/240V

Nominal Frequency : 50-60Hz+5%

Starting Current : 0.4%IB

Active Energy Constant : 6400imp/kWh

Power Consumption Voltage : <2W <8VA

Contact Now

Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy

The CA368 HT57 is a Maximum Demand measurement unit installed on the secondary side of a substation or converter. It is used for
metering large customers or monitoring the load status of an entire site, and for providing grid data for statistical analysis. It operates with CTs of various ratios, working with different amperage grid supplies.

Key Benefits

1)Meters can be extended to Split type with CIU
2) Available with choices of PLC/ RF/ LoRa/ GSM /GPRSwireless communication with AMR AMI server
3) Consumpton record on Time of Use (TOU) basis

Technical Parameters
Nominal voltage Un
3x230/240V
Limited voltage
50%~130%Un
Nominal frequency fn
50-60Hz+5%
Basic current(Ib)
1A
Maximum current(Imax)
10A
Starting current(Ist)
0.4%IB
Active energy constant
6400imp/kWh
Accuracy as Active energy to IEC62053‐21
Class0.5S
Power consumption in Voltage circuit
<2W <8VA
Power consumption in current circuit
<1VA
Operating temperature
-25℃ to+70℃
Storage temperature
-40℃ to+85℃
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy

Main Features

a) Critical metrological value measurement: V, A, PF, P, etc
b) Trip on no credit or preset balance level
c) Disconnect on tamper detected
d) Meter allows setting for power limit, emergency credit, debt collection, surchages, etc
e) Uni-directional measurement for reverse energy( SRE )
f) Anti-fraud features



Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy
Q: Are you a trade company or a manufacturer?
A: We are a original meter manufacturer and solution provide, we can provide more support for you.
Q: Do you provide samples for testing, free or extra?
A: We can provide samples, but we will charge reasonable cost.
Q: What's paypment terms you accept?
A: Paypal/West Union/ T/T / L/C is available. payment ≤USD2000, 100% In advance. payment>USD2000, 30% in advance by T/T, balance payment before shippment.
Q; How long is your delivery time?
A: Generaly it is 5-10 days if the goods is stock, or it is 15-30 days based on your order quantity.
